A nonlinear multi-omics data integration and classification model based on pathway self-attention and graph convolutional networks
Received date: 2025-12-17
Revised date: 2026-02-21
Online published: 2026-04-17
Supported by
National Natural Science Foundation of China(72174079);Lianyungang Science and Technology Planning Project(CG2323);Lianyungang Postdoctoral Research Funding Program(LYG20210010)

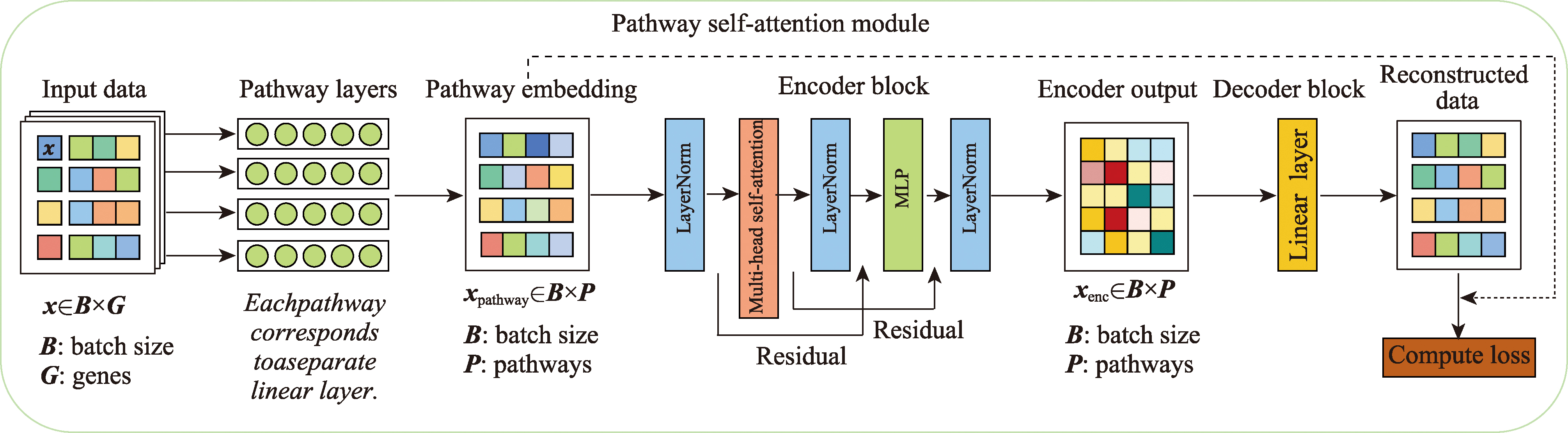

The abundance of omics data has significantly advanced the development of multi-omics data integration techniques. Non-linear embedding approaches for data integration have gradually become the mainstream in multi-omics research, as these approaches can substantially improve cancer analysis by enhancing the quality of the embeddings. However, current multi-omics data integration methods are typically confined to omics measurements, neglecting domain-specific prior knowledge encompassing biological pathways. In this study, we proposed a multi-omics integrated classification model, PathTransGCN, based on pathway self-attention and graph convolutional networks (GCN). The model integrated biological pathway information into multi-omics data analysis with the aim of enhancing the accuracy of cancer classification. Multi-omics data for breast cancer (BRCA), non-small cell lung cancer (NSCLC), and low-grade glioma (LGG) were obtained from The Cancer Genome Atlas (TCGA) and UCSC Xena databases. These data included gene mutations, DNA methylation, copy number variations, and gene expression, and were used to assess the model’s generalizability across different cancers. First, PathTransGCN employed a pathway self-attention module to learn latent representations of samples across different pathways, thereby obtaining multi-omics integration vectors. Concurrently, a patient similarity network (PSN) was constructed using the similarity network fusion (SNF) approach. Second, the integrated vectors and the PSN were jointly fed into a GCN for end-to-end training, enabling precise classification of cancer subtypes. Through multi-omics data analysis of the BRCA dataset, PathTransGCN outperformed several popular algorithms (such as MoGCN and DeePathNet) in the five-class classification of cancer subtypes, achieving an accuracy rate of 87.6% and an F1 score of 86.4%. Moreover, the model demonstrated robust generalization capabilities across both NSCLC and LGG datasets, while effectively identifying key disease-associated biomarkers at the pathway level. Experimental results demonstrate that PathTransGCN exhibits outstanding performance in integrating omics data and delivering interpretable classification outcomes, presenting significant potential for clinical applications.
Qiaosheng Zhang , Junjie Xu , Zhenyu Sun , Zhaoman Zhong , Jie Liu , Yanli Wu , Wanqin Li , Mengjie Hu , Hongpeng Li . A nonlinear multi-omics data integration and classification model based on pathway self-attention and graph convolutional networks[J]. Hereditas(Beijing), 2026 , 48(9) : 931 -945 . DOI: 10.16288/j.yczz.25-275
| [1] | Chen CY, Wang J, Pan DH, Wang XY, Xu YP, Yan JJ, Wang LZ, Yang XF, Yang M, Liu GP. Applications of multi-omics analysis in human diseases. MedComm (2020), 2023, 4(4): e315. |
| [2] | Hayes CN, Nakahara H, Ono A, Tsuge M, Oka S. From omics to multi-omics: a review of advantages and tradeoffs. Genes (Basel), 2024, 15(12): 1551. |
| [3] | Li ZH, Chen MQ, Yuan XJ, Huang HJ, Huang WT, Zhou PY, Zeng C, Feng XN, Yang LY, Huang SQ, Tan CY, Chen CR, Yan QX. Identification of biomarkers for non- obstructive azoospermia based on microRNA and bioinformatics screening. Hereditas(Beijing), 2026, 48(3): 301-312. |
| 李志宏, 陈淼琪, 袁晓珺, 黄华君, 黄琬婷, 周飘雁, 曾晨, 冯许诺, 杨洛瑶, 黄树强, 谭翠钰, 陈彩蓉. 基于microRNA与生物信息学筛选非梗阻性无精子症的生物标志物. 遗传, 2026, 48(3): 301-312. | |
| [4] | Ismaeel AG, Mikhail DY. Effective data mining technique for classification cancers via mutations in gene using neural network. arXiv, 2016, doi: 10.48550/arXiv.1608.02888. |
| [5] | Jiang Q, Jin M. Feature selection for breast cancer classification by integrating somatic mutation and gene expression. Front Genet, 2021, 12: 629946. |
| [6] | Sallis BF, Erkert L, Moñino-Romero S, Acar U, Wu RN, Konnikova L, Lexmond WS, Hamilton MJ, Dunn WA, Szepfalusi Z, Vanderhoof JA, Snapper SB, Turner JR, Goldsmith JD, Spencer LA, Nurko S, Fiebiger E. An algorithm for the classification of mRNA patterns in eosinophilic esophagitis: integration of machine learning. J Allergy Clin Immunol, 2018, 141(4): 1354-1364.e9. |
| [7] | Xie BB, Yang YD, Ding N, Fang XD. Identification of disease targets for precision medicine by integrative analysis of multi-omics data. Hereditas(Beijing), 2015, 37(7): 655-663. |
| 谢兵兵, 杨亚东, 丁楠, 方向东. 整合分析多组学数据筛选疾病靶点的精准医学策略. 遗传, 2015, 37(7): 655-663. | |
| [8] | Huang SJ, Chaudhary K, Garmire LX. More is better: recent progress in multi-omics data integration methods. Front Genet, 2017, 8: 84. |
| [9] | Fiocchi C. Omics and multi-omics in IBD: no integration, no breakthroughs. Int J Mol Sci, 2023, 24(19): 14912. |
| [10] | Abdi H, Williams LJ. Principal component analysis. Wires Comput Stat, 2010, 2(4): 433-459. |
| [11] | McInnes L, Healy J, Melville J. Umap: uniform manifold approximation and projection for dimension reduction. arXiv, 2018, doi: 10.48550/arXiv.1802.03426. |
| [12] | Ng A. Sparse autoencoder. CS294A Lecture Notes, 2011, 72(2011): 1-19. |
| [13] | Makrodimitris S, Pronk B, Abdelaal T, Reinders M. An in-depth comparison of linear and non-linear joint embedding methods for bulk and single-cell multi-omics. Brief Bioinform, 2024, 25(1): bbad416. |
| [14] | Park M, Kim D, Moon K, Park T. Integrative analysis of multi-omics data based on blockwise sparse principal components. Int J Mol Sci, 2020, 21(21): 8202. |
| [15] | Picard M, Scott-Boyer MP, Bodein A, Périn O, Droit A. Integration strategies of multi-omics data for machine learning analysis. Comput Struct Biotechnol J, 2021, 19: 3735-3746. |
| [16] | Chaudhary K, Poirion OB, Lu LQ, Garmire LX. Deep learning-based multi-omics integration robustly predicts survival in liver cancer. Clin Cancer Res, 2018, 24(6): 1248-1259. |
| [17] | Li X, Ma J, Leng L, Han MF, Li MS, He FC, Zhu YP. MoGCN: a multi-omics integration method based on graph convolutional network for cancer subtype analysis. Front Genet, 2022, 13: 806842. |
| [18] | Tan KW, Huang WX, Hu JL, Dong SB. A multi-omics supervised autoencoder for pan-cancer clinical outcome endpoints prediction. BMC Med Inform Decis Mak, 2020, 20(Suppl 3): 129. |
| [19] | Zhang ZY, Wang QL, Zhang JY, Duan YY, Liu JX, Liu ZS, Li CY. Machine learning applications in breast cancer survival and therapeutic outcome prediction based on multi-omic analysis. Hereditas(Beijing), 2024, 46(10): 820-832. |
| 章子怡, 王棨临, 张俊有, 段迎迎, 刘家欣, 刘赵硕, 李春燕. 多组学数据驱动的机器学习模型在乳腺癌生存及治疗响应预测中的应用. 遗传, 2024, 46(10): 820-832. | |
| [20] | Yu TW. AIME: autoencoder-based integrative multi-omics data embedding that allows for confounder adjustments. PLoS Comput Biol, 2022, 18(1): e1009826. |
| [21] | Tan CY, Ong HF, Lim CH, Tan MS, Ooi EH, Wong K. Amogel: a multi-omics classification framework using associative graph neural networks with prior knowledge for biomarker identification. BMC Bioinformatics, 2025, 26(1): 94. |
| [22] | Yan HX, Weng DW, Li DG, Gu Y, Ma WJ, Liu QJ. Prior knowledge-guided multilevel graph neural network for tumor risk prediction and interpretation via multi-omics data integration. Brief Bioinform, 2024, 25(3): bbae184. |
| [23] | Lan W, Liao HB, Chen QF, Zhu LZ, Pan Y, Chen YPP. DeepKEGG: a multi-omics data integration framework with biological insights for cancer recurrence prediction and biomarker discovery. Brief Bioinform, 2024, 25(3): bbae185. |
| [24] | Wang B, Mezlini AM, Demir F, Fiume M, Tu ZW, Brudno M, Haibe-Kains B, Goldenberg A. Similarity network fusion for aggregating data types on a genomic scale. Nat Methods, 2014, 11(3): 333-337. |
| [25] | He KM, Chen XL, Xie SN, Li YH, Dollár P, Girshick R. Masked autoencoders are scalable vision learners. In: 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). New Orleans, LA, USA, 2022, 15979-15988. |
| [26] | Wei L, Jin ZL, Yang SJ, Xu YX, Zhu YT, Ji Y. TCGA- assembler 2: software pipeline for retrieval and processing of TCGA/CPTAC data. Bioinformatics, 2018, 34(9): 1615-1617. |
| [27] | Orrantia-Borunda E, Anchondo-Nuñez P, Acuña-Aguilar LE, Gómez-Valles FO, Ramírez-Valdespino CA. Subtypes of breast cancer. Breast Cancer-tokyo, 2022, doi: 10.36255/exon-publications-breast-cancer-subtypes. |
| [28] | Herbst RS, Morgensztern D, Boshoff C. The biology and management of non-small cell lung cancer. Nature, 2018, 553(7689): 446-454. |
| [29] | Kuenzi BM, Ideker T. A census of pathway maps in cancer systems biology. Nat Rev Cancer, 2020, 20(4): 233-246. |
| [30] | Naidu G, Zuva T, Sibanda EM. A review of evaluation metrics in machine learning algorithms. Computer Science On-line Conference, 2023, 15-25. |
| [31] | Bradley AP. The use of the area under the ROC curve in the evaluation of machine learning algorithms. Pattern Recogn, 1997, 30(7): 1145-1159. |
| [32] | Liao LZ, Li H, Shang WY, Ma L. An empirical study of the impact of hyperparameter tuning and model optimization on the performance properties of deep neural networks. Acm T Softw Eng Meth, 2022, 31(3): 1-40. |
| [33] | Loshchilov I, Hutter F. Decoupled weight decay regularization. arXiv, 2017, doi: 10.48550/arXiv.1711.05101. |
| [34] | Zhou P, Xie XY, Lin ZC, Yan SC. Towards understanding convergence and generalization of AdamW. IEEE Trans Pattern Anal Mach Intell, 2024, 46(9): 6486-6493. |
| [35] | Vaswani A, Shazeer N, Parmar N, Uszkoreit J, Jones L, Gomez AN, Kaiser L, Polosukhin I. Attention is all you need. arXiv, 2017, doi: 10.48550/arXiv.1706.03762. |
| [36] | Bao JX, Chang C, Zhang QYW, Saykin AJ, Shen L, Long Q, Alzheimer’s Disease Neuroimaging Initiative. Integrative analysis of multi-omics and imaging data with incorporation of biological information via structural Bayesian factor analysis. Brief Bioinform, 2023, 24(2): bbad073. |
| [37] | Cantini L, Zakeri P, Hernandez C, Naldi A, Thieffry D, Remy E, Baudot A. Benchmarking joint multi-omics dimensionality reduction approaches for the study of cancer. Nat Commun, 2021, 12(1): 124. |
| [38] | Dennis G Jr, Sherman BT, Hosack DA, Yang J, Gao W, Lane HC, Lempicki RA. DAVID: database for annotation, visualization, and integrated discovery. Genome Biol, 2003, 4(5): P3. |
| [39] | Lu B, Qiu R, Wei JT, Wang L, Zhang QK, Li MS, Zhan XD, Chen J, Hsieh IY, Yang CQ, Zhang J, Sun ZC, Zhu YF, Jiang T, Zhu H, Li J, Zhao W. Phase separation of phospho-HDAC6 drives aberrant chromatin architecture in triple-negative breast cancer. Nat Cancer, 2024, 5(11): 1622-1640. |
| [40] | Hammer A, Diakonova M. Tyrosyl phosphorylated serine- threonine kinase PAK1 is a novel regulator of prolactin- dependent breast cancer cell motility and invasion. Adv Exp Med Biol, 2015, 846: 97-137. |
| [41] | Pan LH, Li JL, Xu Q, Gao ZL, Yang M, Wu XP, Li XS. HER2/PI3K/AKT pathway in HER2-positive breast cancer: a review. Medicine (Baltimore), 2024, 103(24): e38508. |
| [42] | Dawson MA, Bannister AJ, Göttgens B, Foster SD, Bartke T, Green AR, Kouzarides T. JAK2 phosphorylates histone H3Y41 and excludes HP1α from chromatin. Nature, 2009, 461(7265): 819-822. |
| [43] | Lin NU, Winer EP. New targets for therapy in breast cancer: small molecule tyrosine kinase inhibitors. Breast Cancer Res, 2004, 6(5): 204-210. |
| [44] | Adhikari VP, Lu LJ, Kong LQ. Does hepatitis B virus infection cause breast cancer? Chin Clin Oncol, 2016, 5(6): 81. |
| [45] | Lee JS, Tocheny CE, Shaw LM. The insulin-like growth factor signaling pathway in breast cancer: an elusive therapeutic target. Life (Basel), 2022, 12(12): 1992. |
/
| 〈 |
|
〉 |
