遗传 ›› 2026, Vol. 48 ›› Issue (9): 904-920.doi: 10.16288/j.yczz.26-113
收稿日期:2026-04-27
修回日期:2026-06-11
出版日期:2026-07-28
发布日期:2026-07-28
通讯作者:
刘骕骦,博士,副教授,研究方向:植物逆境分子生物学。E-mail: liu@zjhzu.edu.cn作者简介:钱栩栋,本科生,专业方向:植物逆境分子生物学。E-mail: ctq790305@qq.com
基金资助:
Xudong Qian(
), Yulu Zhong, Shuhui Zheng, Jianing Lü, Sushuang Liu(
)
Received:2026-04-27
Revised:2026-06-11
Published:2026-07-28
Online:2026-07-28
Supported by:摘要:
NADPH氧化酶(NADPH oxidases,NOXs)是植物活性氧产生的重要酶类,在生长发育及逆境响应中具有重要作用。为阐明甜瓜(Cucumis melo L.)NOX基因家族的序列特征及其低温响应模式,本研究利用生物信息学分析、RNA-seq转录组测序和RT-qPCR技术,对甜瓜NOX家族成员进行了全基因组水平的鉴定与表达模式分析。结果表明,甜瓜基因组中共鉴定出8个NOX成员,分布在6条染色体上,均含有Ferric_reductase、FAD_binding_8、NAD_binding_6和NADPH_Ox等保守结构域,蛋白整体呈碱性亲水特征。系统发育分析将NOX蛋白划分为5个亚组;共线性分析显示,甜瓜种内仅存在1对复制基因,且受到纯化选择作用。启动子区域含有多种激素和逆境响应相关顺式作用元件,其中CmNOX2和CmNOX4含低温响应元件。4℃处理24 h和48 h后,叶片相对离子渗透率由28.33%分别提升至42.67%和52.67%;通过转录组分析分别鉴定出5,633个和6,882个差异表达基因。冷响应相关基因呈明显差异表达,其中SLAC1和CPK19的表达持续上调。RT-qPCR结果显示,CmNOX2、CmNOX5、CmNOX6和CmNOX7在低温处理后表达量显著下调,而CmNOX4在48 h表达量极显著上调。综合启动子元件和表达特征,CmNOX4可能是参与甜瓜低温响应的重要候选基因。本研究系统解析了甜瓜NOX基因家族的结构、进化及表达特征,筛选出低温响应候选基因,为进一步研究甜瓜低温适应机制提供了参考。
钱栩栋, 钟瑜璐, 郑书徽, 吕佳宁, 刘骕骦. 甜瓜NOX基因家族全基因组鉴定及其响应低温胁迫的表达分析[J]. 遗传, 2026, 48(9): 904-920.
Xudong Qian, Yulu Zhong, Shuhui Zheng, Jianing Lü, Sushuang Liu. Genome-wide identification and cold-stress-responsive expression analysis of the NOX gene family in Cucumis melo[J]. Hereditas(Beijing), 2026, 48(9): 904-920.
表1
本研究所用的RT-qPCR引物"
| 基因 | 引物名称 | 序列(5′→3′) | 扩增片段长度(bp) |
|---|---|---|---|
| CmNOX1 | MELO3C015312.1-F | GCGAACATACCGCTCACTCC | 471 |
| MELO3C015312.1-R | CCTTCCGTCCCCTTCACAA | ||
| CmNOX2 | MELO3C029753.1-F3 | GAGCTTTGTTGGATTTGTGCC | 209 |
| MELO3C029753.1-R3 | AATAGAGTTGTTGTTGCGTTGGA | ||
| CmNOX3 | MELO3C026754.1-F3 | CTGAAGCCAACAAACGAAA | 255 |
| MELO3C026754.1-R3 | ACGACAAACAGGGAGTAAAAT | ||
| CmNOX4 | MELO3C016333.1-F | ACGCCGACCTTAACTTCCC | 238 |
| MELO3C016333.1-R | GCTCTGCTCCAACACCACC | ||
| CmNOX5 | MELO3C005719.1-F | GCCCAAGCCGTTTGATAGAC | 381 |
| MELO3C005719.1-R | TCATCCCCTGGAGCAGAAGTA | ||
| CmNOX6 | MELO3C025712.1-F | GATGGGTTATTGTGTTAGTGTTGC | 129 |
| MELO3C025712.1-R | AAAATGGAGTTGAGAAATGTGGAT | ||
| CmNOX7 | MELO3C025713.1-F3 | AGGAGATTGGACAGGGGAG | 200 |
| MELO3C025713.1-R3 | CAAAGCCTATGAGCAAGAGAA | ||
| CmNOX8 | MELO3C020689.1-F5 | GTTCACTATAACTTCTGCCCC | 112 |
| MELO3C020689.1-R5 | CTCCATTTCACATACCTTTGC | ||
| CmEFIa | EFIa-F | ACTGTGCTGTCCTCATTATTG | 98 |
| EFIa-R | AGGGTGAAAGCAAGAAGAGC |
表2
CmNOX蛋白理化性质及亚细胞定位"
| 名称 | ID | 氨基酸长度 (aa) | 分子质量 (kDa) | 等电点 (pI) | 不稳定系数 | 平均亲水指数 (GRAVY) | 亚细胞定位 |
|---|---|---|---|---|---|---|---|
| CmNOX1 | MEL03C015312.1 | 889 | 101,305.30 | 9.28 | 38.83 | -0.244 | 质膜 |
| CmNOX2 | MEL03C029753.1 | 777 | 90,002.70 | 9.18 | 50.79 | -0.175 | 质膜 |
| CmNOX3 | MEL03C026754.1 | 912 | 102,714.68 | 9.25 | 37.92 | -0.298 | 质膜 |
| CmNOX4 | MEL03C016333.1 | 988 | 112,693.86 | 9.02 | 50.28 | -0.149 | 质膜 |
| CmNOX5 | MEL03C005719.1 | 1,032 | 117,892.23 | 9.26 | 53.31 | -0.239 | 质膜 |
| CmNOX6 | MEL03C025712.1 | 832 | 95,835.22 | 8.71 | 50.07 | -0.207 | 细胞核 |
| CmNOX7 | MEL03C025713.1 | 711 | 82,255.32 | 7.86 | 35.83 | -0.177 | 质膜 |
| CmNOX8 | MEL03C020689.1 | 840 | 96,914.99 | 9.02 | 37.83 | -0.181 | 质膜 |

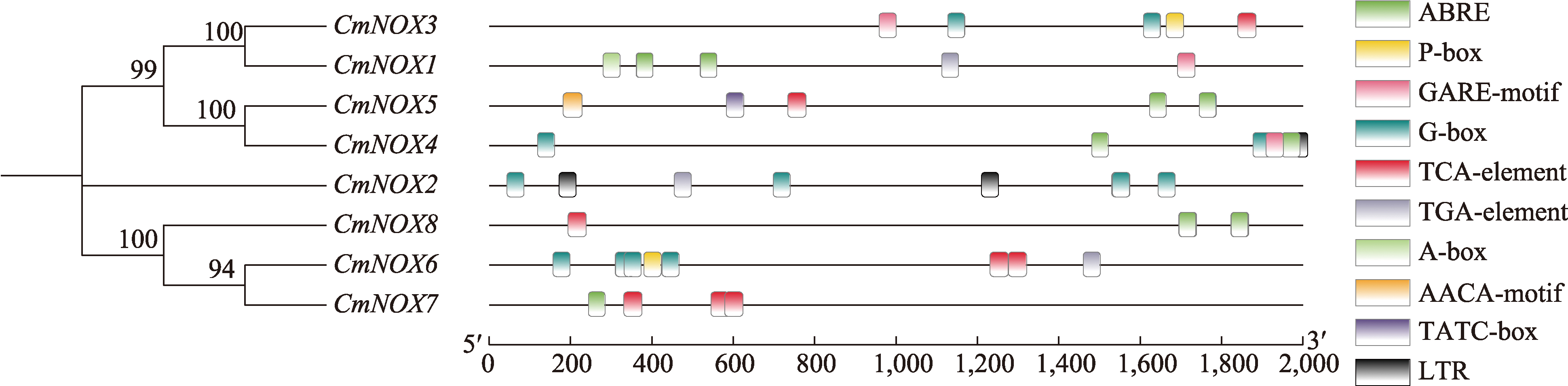

表3
甜瓜NOX基因启动子顺式作用元件及其功能注释"
| 元件 | 序列 | 功能 |
|---|---|---|
| TCA-element | CCATCTTTTT | 参与水杨酸响应的顺式作用元件 |
| ABRE | ACGTG | 参与脱落酸响应的顺式作用元件 |
| AACA-motif | TAACAAACTCCA | 参与胚乳特异性负调控表达 |
| TATC-box | TATCCCA | 参与赤霉素响应的顺式作用元件 |
| GARE-motif | TCTGTTG | 赤霉素响应元件 |
| TGA-element | AACGAC | 生长素响应元件 |
| LTR | CCGAAA | 参与低温响应的顺式作用元件 |
| G-box P-box | TACGTG CCTTTTG | 参与光响应的顺式作用调控元件 赤霉素响应元件 |
| A-box | CCGTCC | 顺式作用调控元件 |
| [1] |
Marino D, Dunand C, Puppo A, Pauly N. A burst of plant NADPH oxidases. Trends Plant Sci, 2012, 17(1): 9-15.
pmid: 22037416 |
| [2] |
Chapman JM, Muhlemann JK, Gayomba SR, Muday GK. RBOH-dependent ROS synthesis and ROS scavenging by plant specialized metabolites to modulate plant development and stress responses. Chem Res Toxicol, 2019, 32(3): 370-396.
pmid: 30781949 |
| [3] |
Kaya H, Takeda S, Kobayashi MJ, Kimura S, Iizuka A, Imai A, Hishinuma H, Kawarazaki T, Mori K, Yamamoto Y, Murakami Y, Nakauchi A, Abe M, Kuchitsu K. Comparative analysis of the reactive oxygen species- producing enzymatic activity of Arabidopsis NADPH oxidases. Plant J, 2019, 98(2): 291-300.
pmid: 30570803 |
| [4] | Chen QH, Yang GW. Signal function studies of ROS, especially RBOH-dependent ROS, in plant growth, development and environmental stress. J Plant Growth Regul, 2020, 39(1): 157-171. |
| [5] |
Mittler R, Vanderauwera S, Gollery M, Van Breusegem F. Reactive oxygen gene network of plants. Trends Plant Sci, 2004, 9(10): 490-498.
pmid: 15465684 |
| [6] |
Baxter A, Mittler R, Suzuki N. ROS as key players in plant stress signalling. J Exp Bot, 2014, 65(5): 1229-1240.
pmid: 24253197 |
| [7] |
Chu-Puga Á, González-Gordo S, Rodríguez-Ruiz M, Palma JM, Corpas FJ. NADPH oxidase (Rboh) activity is up regulated during sweet pepper (Capsicum annuum L.) fruit ripening. Antioxidants (Basel), 2019, 8(1): 9.
pmid: 30609654 |
| [8] | Wang SS, Zhu XN, Lin JX, Zheng WJ, Zhang BT, Zhou JQ, Ni J, Pan ZC, Zhu SH, Ding WN. OsNOX3, encoding a NADPH oxidase, regulates root hair initiation and elongation in rice. Biol Plant, 2018, 62(4): 732-740. |
| [9] |
Yang L, Ye CF, Zhao YT, Cheng XL, Wang YQ, Jiang YQ, Yang B. An oilseed rape WRKY-type transcription factor regulates ROS accumulation and leaf senescence in Nicotiana benthamiana and Arabidopsis through modulating transcription of RbohD and RbohF. Planta, 2018, 247(6): 1323-1338.
pmid: 29511814 |
| [10] | Khafi AS, Iranbakhsh A, Safipour Afshar A, Khavari Nejad RA. RBOH expression and ROS metabolism in Citrullus colocynthis under cadmium stress. Braz J Bot, 2020, 43(1): 35-43. |
| [11] | Piotrovskii MS, Shevyreva TA, Zhestkova IM, Trofimova MS. Activation of plasmalemmal NADPH oxidase in etiolated maize seedlings exposed to chilling temperatures. Russ J Plant Physiol, 2011, 58(2): 290-298. |
| [12] |
Zhang YL, Zhang YW, Luo L, Lu CY, Kong WW, Cheng LB, Xu XY, Liu JH. Genome wide identification of respiratory burst oxidase homolog (Rboh) genes in Citrus sinensis and functional analysis of CsRbohD in cold tolerance. Int J Mol Sci, 2022, 23(2): 648.
pmid: 35054832 |
| [13] |
Kabała K, Reda M, Wdowikowska A, Janicka M. Role of plasma membrane NADPH oxidase in response to salt stress in cucumber seedlings. Antioxidants (Basel), 2022, 11(8): 1534.
pmid: 36009253 |
| [14] |
Chang YL, Li WY, Miao H, Yang SQ, Li R, Wang X, Li WQ, Chen KM. Comprehensive genomic analysis and expression profiling of the NOX gene families under abiotic stresses and hormones in plants. Genome Biol Evol, 2016, 8(3): 791-810.
pmid: 26907500 |
| [15] |
Zhang ZB, Zhao YL, Feng XB, Luo ZY, Kong SW, Zhang C, Gong AD, Yuan HY, Cheng L, Wang XN. Genomic, molecular evolution, and expression analysis of NOX genes in soybean (Glycine max). Genomics, 2019, 111(4): 619-628.
pmid: 29621573 |
| [16] |
Du LH, Jiang Z, Zhou YD, Shen L, He J, Xia X, Zhang LH, Yang X. Genome-wide identification and expression analysis of respiratory burst oxidase homolog (RBOH) gene family in eggplant (Solanum melongena L.) under abiotic and biotic stress. Genes (Basel), 2023, 14(9): 1665.
pmid: 37761805 |
| [17] |
Di QH, Li YS, Li SZ, Shi AK, Zhou MD, Ren HZ, Yan Y, He CX, Wang J, Sun MT, Yu XC. Photosynthesis mediated by RBOH-dependent signaling is essential for cold stress memory. Antioxidants (Basel), 2022, 11(5): 969.
pmid: 35624833 |
| [18] |
Wang GF, Li WQ, Li WY, Wu GL, Zhou CY, Chen KM. Characterization of rice NADPH oxidase genes and their expression under various environmental conditions. Int J Mol Sci, 2013, 14(5): 9440-9458.
pmid: 23629674 |
| [19] |
Song ZQ, Chen C, Duan H, Yu T, Zhang YQ, Wei YN, Xu DC, Liu D. Identification of VcRBOH genes in blueberry and functional characterization of VcRBOHF in plant defense. BMC Genomics, 2025, 26(1): 153.
pmid: 39962409 |
| [20] |
Hu CH, Wei XY, Yuan B, Yao LB, Ma TT, Zhang PP, Wang X, Wang PQ, Liu WT, Li WQ, Meng LS, Chen KM. Genome-wide identification and functional analysis of NADPH oxidase family genes in wheat during development and environmental stress responses. Front Plant Sci, 2018, 9: 906.
pmid: 30083172 |
| [21] | Cepauskas D, Miliute I, Staniene G, Gelvonauskiene D, Stanys V, Jesaitis AJ, Baniulis D. Characterization of apple NADPH oxidase genes and their expression associated with oxidative stress in shoot culture in vitro. Plant Cell Tiss Organ Cult, 2016, 124(3): 621-633. |
| [22] |
Wang J, Liu XJ, Kang YD, Liu AZ, Li P. Functional analysis and interaction networks of Rboh in poplar under abiotic stress. Front Plant Sci, 2025, 16: 1553057.
pmid: 40078632 |
| [23] |
Li DH, Wu D, Li SZ, Dai Y, Cao YP. Evolutionary and functional analysis of the plant-specific NADPH oxidase gene family in Brassica rapa L. R Soc Open Sci, 2019, 6(2): 181727.
pmid: 30891283 |
| [24] | Ye H, Liu HZ, Han M, Zhang NY, Feng XL, Gao T, Lei DF, Li HC, Gao ZM, Su Y, Chai M, Zhou HJ, Wang YL. The genome-wide identification, characterization, and expression profiles of the NADPH oxidase (NOX) gene family under drought and salt stress in Opisthopappus taihangensis (Asteraceae). Agronomy, 2024, 14(4): 653. |
| [25] |
Yano R, Ariizumi T, Nonaka S, Kawazu Y, Zhong SL, Mueller L, Giovannoni JJ, Rose JKC, Ezura H. Comparative genomics of muskmelon reveals a potential role for retrotransposons in the modification of gene expression. Commun Biol, 2020, 3(1): 432.
pmid: 32792560 |
| [26] | Liu T, Shi JL, Li M, Ye XL, Qi HY. Trehalose triggers hydrogen peroxide and nitric oxide to participate in melon seedlings oxidative stress tolerance under cold stress. Environ Exp Bot, 2021, 184: 104379. |
| [27] | Korkmaz A, Dufault RJ. Developmental consequences of cold temperature stress at transplanting on seedling and field growth and yield. II. Muskmelon. J Am Soc Hortic Sci, 2001, 126(4): 410-413. |
| [28] | Korkmaz A, Dufault RJ. Influence of short-term cyclic cold temperature stress on muskmelon and honeydew yield. HortTechnology, 2003, 13(1): 67-70. |
| [29] |
Nabwire S, Wakholi C, Faqeerzada MA, Arief MAA, Kim MS, Baek I, Cho BK. Estimation of cold stress, plant age, and number of leaves in watermelon plants using image analysis. Front Plant Sci, 2022, 13: 847225.
pmid: 35251113 |
| [30] |
Yu JY, Wu S, Sun HH, Wang X, Tang XM, Guo SG, Zhang ZH, Huang SW, Xu Y, Weng YQ, Mazourek M, McGregor C, Renner SS, Branham S, Kousik C, Wechter WP, Levi A, Grumet R, Zheng Y, Fei ZJ. CuGenDBv2:an updated database for cucurbit genomics. Nucleic Acids Res, 2023, 51(D1): D1457-D1464.
pmid: 36271794 |
| [31] | Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2-ΔΔCT method. Methods, 2001, 25(4): 402-408. |
| [32] | Sheng Y, Wang XY, Wang CY, Xu XY, Jiang LJ. Genome-wide identification and cold stress response analysis of the Rboh gene family in pomegranate (Punica granatum L.). Agric, 2025, 15(17): 1883. |
| [33] |
Wang YH, Liu ZS, Li L, Pan XJ, Yao KD, Wei WY, Liao WB, Wang CL. The characteristics and expression analysis of the tomato SlRBOH gene family under exogenous phytohormone treatments and abiotic stresses. Int J Mol Sci, 2024, 25(11): 5780.
pmid: 38891968 |
| [34] |
Zhang HY, Wang X, Yan A, Deng J, Xie YP, Liu SY, Liu DB, He L, Weng JF, Xu JY. Evolutionary analysis of respiratory burst oxidase homolog (RBOH) genes in plants and characterization of ZmRBOHs. Int J Mol Sci, 2023, 24(4): 3858.
pmid: 36835269 |
| [35] | Zhang JW, Xie YD, Ali B, Ahmed W, Tang Y, Li HX. Genome-wide identification, classification, evolutionary expansion and expression of Rboh family genes in pepper (Capsicum annuum L.). Trop Plant Biol, 2021, 14(3): 251-266. |
| [36] | Hu G, Liang DC. Bioinformatics of cassava NOX gene family and its expression analysis. J Southern Agric, 2019, 50(10): 2178-2187. |
| 胡广, 梁大成. 木薯NOX基因家族成员的生物信息学及其表达分析. 南方农业学报, 2019, 50(10): 2178-2187. | |
| [37] |
Zhang YT, Li YL, He YW, Hu WJ, Zhang Y, Wang XR, Tang HR. Identification of NADPH oxidase family members associated with cold stress in strawberry. FEBS Open Bio, 2018, 8(4): 593-605.
pmid: 29632812 |
